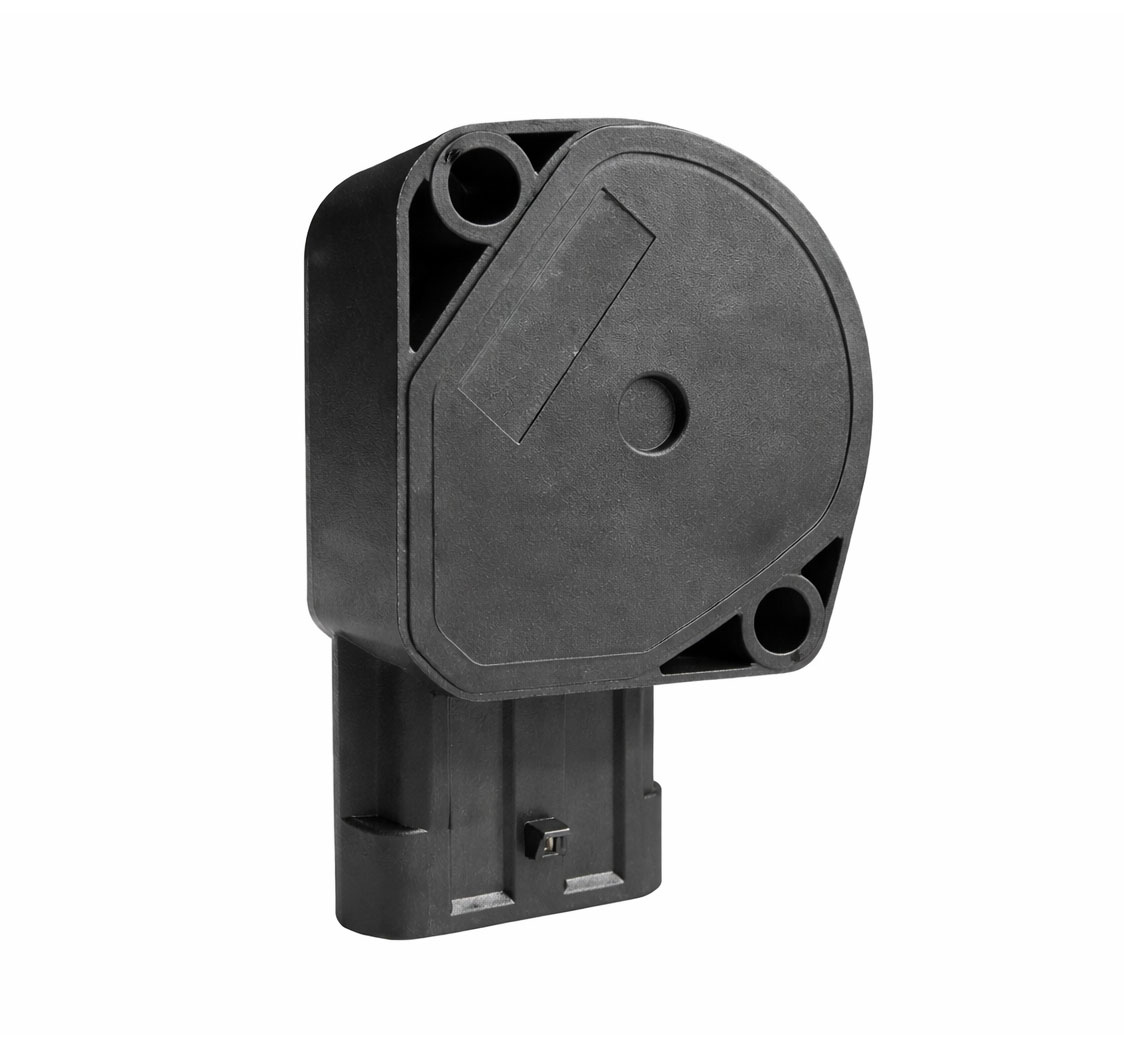

5124 Rotary Position Sensor

Features

  • Sensor: 5124 Contact Sensor
  • Travel: 48.5°, 73.5°
  • Resistance: 5KΩ ±20%, 2.74KΩ ±20%, 2.5KΩ ±20%, 3KΩ ±20%
  • Working Voltage: 5V
  • Max Input: 16V
  • Max Current: 10mA
  • Linearity: 2%
  • Protection: IP65
  • Life Cycle: 3,000,000
  • Operating Temp: -40°C to 125°C
  • Standards Met: AEB 15.59

For additional features and product dimensional data, see technical guide.
